MPI 55 Series C-Frame with Smart Controls™

C-Frame Wax Injector

MPI offers the most sophisticated wax injection systems in the industry, generating higher casting yields, more patterns per hour and increased productivity and throughput.  Our Smart Process Control provides real time monitoring and control of all injection parameters and feature an intuitive Windows based touch screen. Our wax conditioning technology maintains a constant wax viscosity which produces consistent wax patterns and our quick change technology allows you to change dies in just 60 seconds – minimizing transition times and maximizing throughput. All MPI systems come with our world class technical support and training.

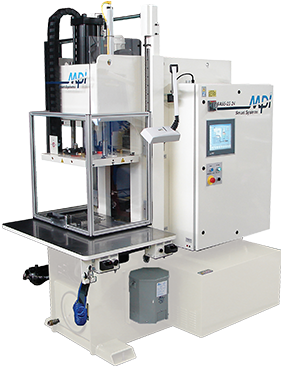

The Model 55 Series wax injector is a C-frame hydraulic press designed to fit most applications. The machine is available in 25, 40, 50 and 100 ton clamping forces. The C-frame clamping unit is the most ergonomic for the operator, providing unobstructed access to their work area.

  • Rigid C-Frame- Parallel Die Opening, uniform die clamping, easy die access.
  • Smart Controls™ – Process control, with real time injection graphing.
  • Injection System- Tightest temperature control in the industry.
  • Inject your wax into your dies at MPI and decide for yourself.

1. MPI’s Rigid C-Frame
2. Two Wax-Conditioning Reservoirs
3. Single-Shuttle Table
4. Programmable Nozzle Positioning
5. Platen Heating and Cooling
6. Wax-Conditioning Reservoir with 5-Zone, Temperature-Controlled Injection System
7. Smart Controls™

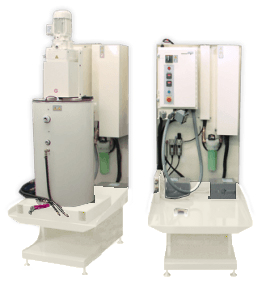

Removable Wax Reservoir and Docking Station

MPI’s new removable wax reservoir and docking station was designed for wax rooms with more than two waxes and will instantly reduce downtime while dramatically improving productivity.

Click Here For More

Smart Controls™ with Process Control

Real time graphical representation of pattern cycles compare wax flow and pressure data to predetermined baselines.

Adjustments are intelligently introduced if needed. This significantly reduces set up time.

Click Here For More

Tee Slots (optional)
Three parallel tee slots per platen, running perpendicular to the nozzle, provide full coverage die clamping and eliminate stripped threads.

Jib Crane (optional)
The unique combination of Jib Crane and Hydraulic Shuttle Table allow quick, safe pattern removal and die changeovers by a single operator.

Hydraulic Pattern Ejection (optional)
Controlled pattern removal from the lower stationary platen.

Second Shuttle (optional)
Increase machine utilization by injecting one die while performing die disassembly and pattern removal on a second die.

Standard Models:

55-25-1825 ton (22.6 Tonnes)C-Frame with 18″ (457mm) daylight
55-25-2425 ton (22.6 Tonnes)C-Frame with 24″ (610mm) daylight
55-40-2440 ton (36.2 Tonnes)C-Frame with 24″ (610mm) daylight
55-40-3040 ton (36.2 Tonnes)C-Frame with 30″ (762mm) daylight
55-50-2450 ton (45.3 Tonnes)C-Frame with 24″ (610mm) daylight
55-50-3050 ton (45.3 Tonnes)C-Frame with 30″ (762mm) daylight
55-100-32100 ton (90.7 Tonnes)C-Frame with 32″ (813mm) daylight
55-100-38100 ton (90.7 Tonnes)C-Frame with 38″ (965mm) daylight
