Automated Dual Turbo Wheel Wax Injector
High Quality Meets High Demand
Produces Turbo Wheels 24-hours-a-day, 365-day-a-year
Continuing MPI’s innovation, the model 105T Automatic Dual Turbo Wheel Wax Injection Cell is well equipped to handle the high-throughput, high-precision requirements of producing consistent wax parts for the investment casting industry. The massively expanding $18 billion turbocharger industry requires customers to produce a high volume of turbo wheels with high precision and repeatability. The 105T is designed to operate 24-hours-a-day, 365-days-a-year, producing parts that make our customers profitable. Using MPI’s two-station injection machine and three-robot handling system, backed up by MPI’s global support staff, customers are realizing immediate results in terms of repeatability, throughput and scrap reduction especially defects caused by operator handling.

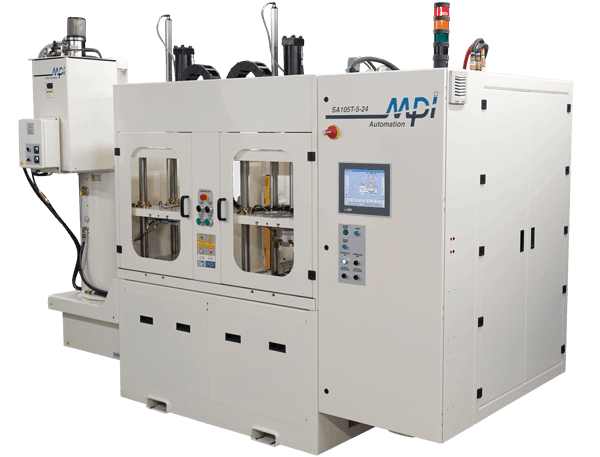

MODEL 105T-5-24
US (60Hz) | METRIC (50Hz) | |
Clamp Force | 5 ton | 4.5 ton |
A. Daylight Maximum | 24 in | 609.6 mm |
B. Daylight Minimum | 4 in | 101.6 mm |

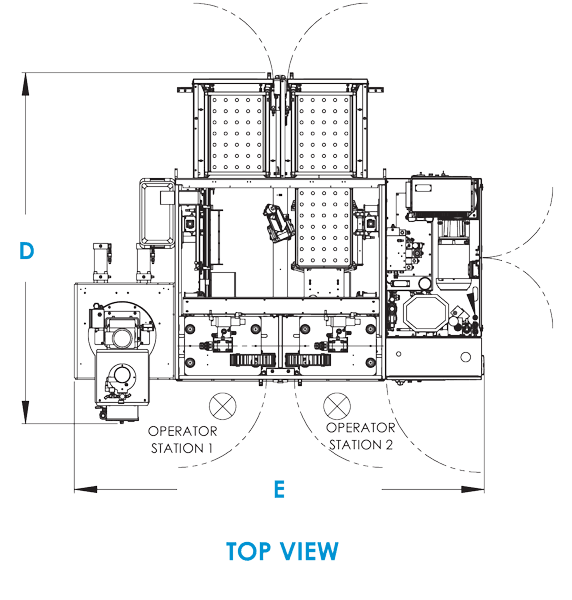

C. Overall Height | 102 in | 2595 mm |
D. Overall Depth | 110 in | 2791 mm |
E. Overall Width | 128 in | 3259 mm |
Distance Between Columns | 18.5 in | 470 mm |
Wax Reservoir Capacity | 30 gal | 113.55 l |
Single Shot Capacity | 75 cu in | 1.22 l |
Injection Pressure | 50-1,000 psi | 3.4-68.94 bar |
Injection Rate | 0-15 cu in/sec | 0-.25 l/sec |
Injection Time | 0-999 sec | 0-999 sec |
Electric Standard | 460V, 60Hz, 3ph | 380V, 50Hz, 3ph |
Air Requirements | 80 psi | 5.51 bar |
Machine Weight | 5 ton | 4.5 ton |
FEATURES AND BENEFITS
FEATURES | BENEFITS |
Two fully independent, side-by-side injectors | 100% throughput; no waiting |
Automated die opening and closing | Fully automatic die operation |
Four platen temperature control | Repeatable patterns; no viscosity variation |
Paste wax | Fastest cycle times; highest quality |
Process different-sized wheels per station | Product selection flexibility |
Automated tray loading and unloading | Trays changed and sorted in seconds |
First in/first out tray loading | Pattern cooling time before assembly |
Conveyor system (optional) | Integrated to customer automation process |
Precision injection controls to include: - Temperature control - Injection flow rate - Injection pressure | MPI’s world-class process control |
Automatic cleaning of die(s) | Menu-controlled robotic cleaning of die |
Automatic lubrication of die(s) | Consistent robotic die-lubrication spray |
Automatic removal of patterns from die(s) | Reliable handling of parts |
Automatic trimming of injection runners | Precise trimming eliminates variance |
Accurate placement of patterns on trays | Integration to downstream processing |
High-quality turbo wheel wax patterns | Ready for assembly; no rework |
Minimal operator tending | Operators available for other tasks |
Self-contained unit | Minimal floor space; safety; forklift compliant |
Easy access to maintenance points | Reduced meantime to service |
